STANLEY® Optical Level AL24GVP
1-77-160
STANLEY® Optical Level AL24GVP
- 90 meter Working range
- Includes hard case, aluminum tripod, measuring staff
- Accuracy +/- 1.6mm @ 45 meters
Product Overview
AL24GVP AUTO LEVEL W/SITE - EU PLUG
Additional Features
- Large effective aperture and minimum focus of 0.3 meters
- 24 x Magnification with the wire hung compensator for optimum accuracy and range
- Large, easy-to-use, precise focusing adjustments on left and right sides with friction-braked rotation
- Easy-to-read horizontal circle and Penta Prism - makes it easier to view the bubble
- Water resistant, sealed construction with sealed, dust protect leveling screws - can be used in all weathers
- Compensator lock protects unit in transit
- 5/8" x 11 threads to fit standard tripods
Includes
- (1) Level
- (1) Tripod
- (1) Measuring Rod
- (1) Plumb Bob/Line

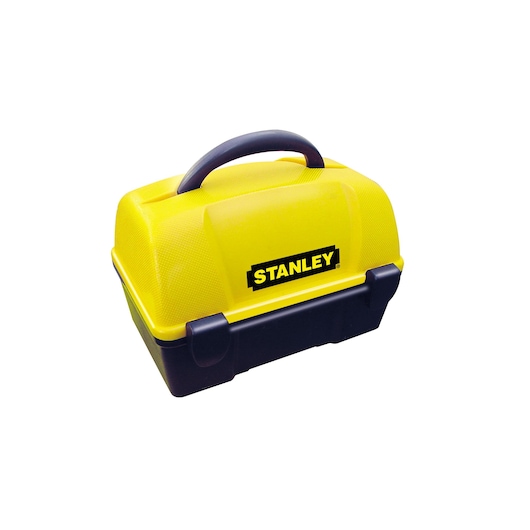

- (1) Kit box/Hard Protective Carry Case
- (1) Lens Cover
- (1) Allen Wrench
- (1) Adjusting Pin
- (1) Manual
Specifications
|
IP Rating
|
IPX-4
|
|
Is it a Set?
|
No
|
|
Leveling Type
|
Manual
|
|
Number Of Pieces
|
1
|
|
Optics Accuracy
|
+/-1.6mm@45m
|
|
Product Height [mm]
|
1330
|
|
Product Length [mm]
|
210
|
|
Product Width [mm]
|
200
|
|
Standards / Norms
|
2011/65/EU (RoHS), 2012/19/EU (WEEE), 2014/30/EU (EMC)
|
|
Working Distance [m]
|
90
|
|
Working Range [mm]
|
90
|
