FMHT1-77357

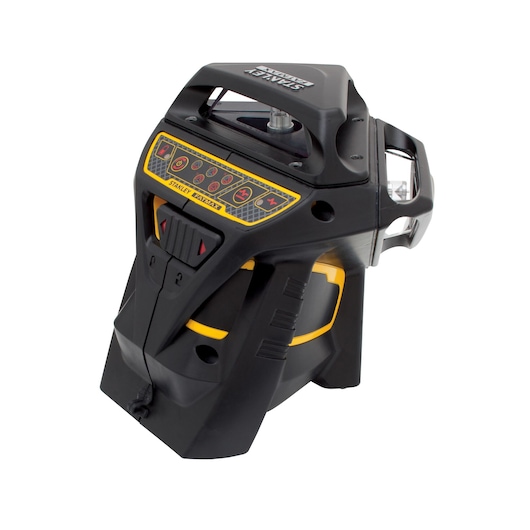

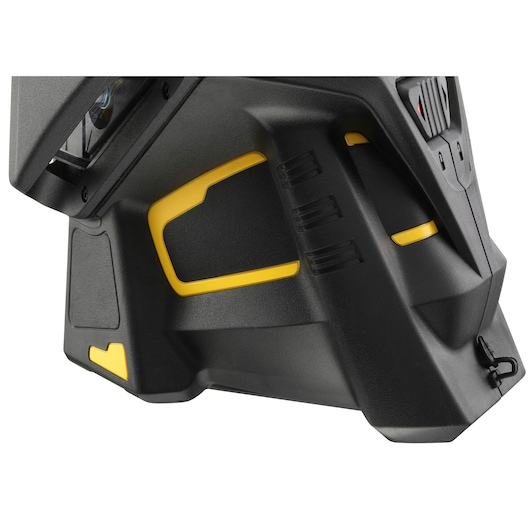

STANLEY® FATMAX® X3R Multiline Laser Level (Red)

Product Overview

MULTILINIENLASER FATMAX X3R, RED

Additional Features

  • PRECISION AND ACCURACY: +/- 3mm at 10M
  • IP RATED TO IP54: Protects against dust and water spray
  • PENDULUM LOCK: For safe transportation
  • PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m
  • RUNS ON: Internal Li-Ion battery
  • INCLUDES: Carry Case, laser target, glasses

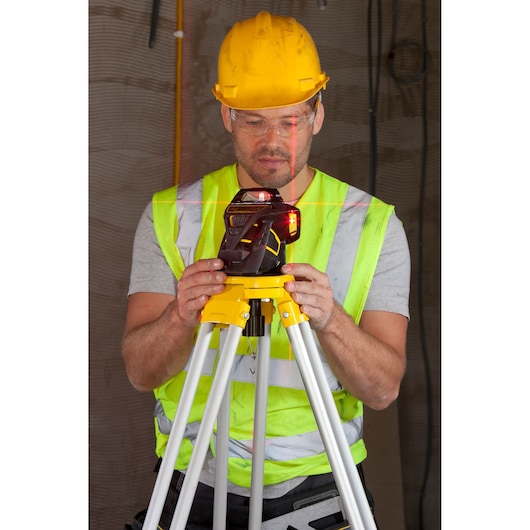

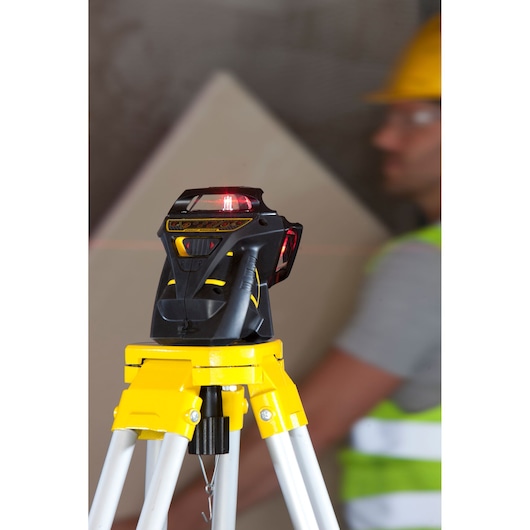

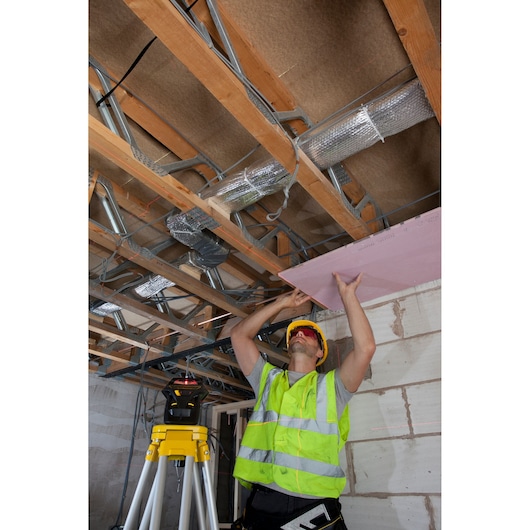

  • TRIPOD THREAD: 1/4” & 5/8" thread allows the unit to be mounted to a tripod

Includes

  • (1) Laser Level (Point/Line)

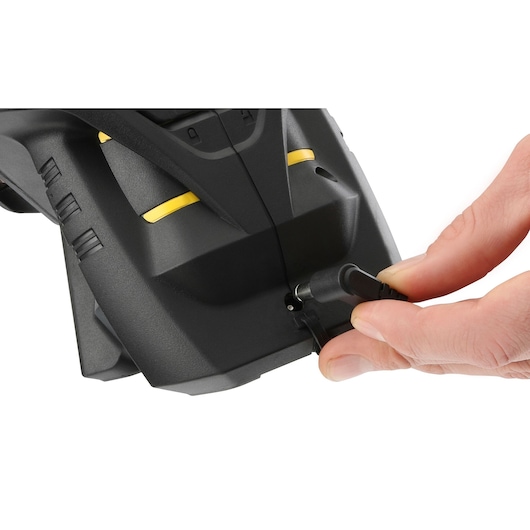

  • (1) Charger
  • (1) Clamp
  • (1) Laser Target Card
  • (1) Red Glasses
  • (1) Battery
  • (1) Hard Case
  • (1) Extra Plug

Specifications

Battery Chemistry
Lithium Ion
Battery Source
Internal
Display Type
N/A
Has CE Mark?
Yes
Has Pulse Mode?
Yes
IP Rating
IP54
Is it a Set?
No
Laser Accuracy
± 3mm @ 10 m
Laser Beam Color
Red Beam
Laser Classification
2
Leveling Type
Self-leveling
Line Diagram
3 x 360°
Materials Housing
Plastic
Number of Batteries Included
1
Number of Beams
3
Number Of Pieces
2
Packaging
Plastic Case
Product Height [mm]
180
Product Length [mm]
440
Product Weight Gross [Kg]
4.08
Product Weight [Kg]
4.075
Product Width [mm]
330
Visible Working Distance [m]
20
Visible Working Distance - Radius [m]
20
Working Distance with Detector [m]
50
Working Distance with Detector - Radius [m]
50
Working Range [mm]
20

Support

Warranty

  • 2 Year Limited Warranty

We're confident of the quality of our products and we'll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
