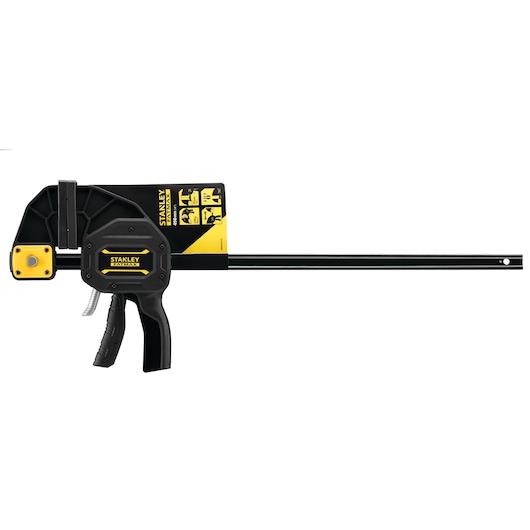

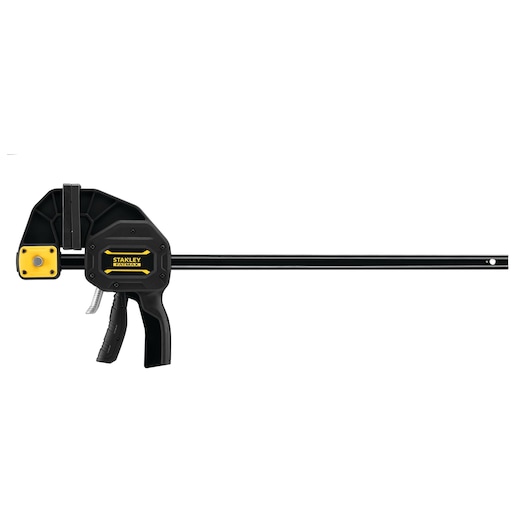

STANLEY® FATMAX® 450mm XL Trigger Clamp
FMHT0-83213
STANLEY® FATMAX® 450mm XL Trigger Clamp
- REINFORCED GLASS FIBRE NYLON BODY: For minimal distortion and movement under load
- ROUNDED SHOULDERS WITH RIBS: For added durability and strength
- DIE CAST RELEASE TRIGGER: For quick removal from the work piece
Product Overview
STANLEY® FATMAX® XL 450 mm
Additional Features
- REVERSIBLE JAW WITH PUSH BUTTON: Allows tool free conversion from a clamp to a spreading tool
- REMOVABLE SOFT JAWS PADS: Prevents marking of the workpiece
- STEEL I-BEAM BAR - Cold rolled and heat treated for minimal bend and flex under load
- 270KG SUSTAINED CLAMPING FORCE
- 317KG MAXIMUM CLAMPING FORCE
Specifications
|
Bar Material
|
Steel
|
|
Handle Type
|
N/A
|
|
Product Dimensions with Packaging l x w x h
|
70X23.5X3.5CM
|
|
Product Width [Metric]
|
23.5 cm
|
|
CE Mark
|
No
|
|
Material Thread Screw
|
N/A
|
|
Body Material
|
Resin
|
|
Spreading Function
|
Yes
|
|
Product Weight [Metric]
|
1.437 Kg
|
|
Product Height [Metric]
|
3.5 cm
|
|
Clamping Force [Metric]
|
270 Kg
|
|
Product Dimensions w/o Packaging l x w x h
|
70X23.5X3.5CM
|
|
Clamps and Vices Product Type
|
Trigger Clamp / One Handed Bar Clamp
|
|
Standards/Norms
|
N/A
|
|
Clamping Capacity [Metric]
|
450 mm
|
|
Maximum Clamping Force [Metric]
|
360 Kg
|
|
Throat Depth [Metric]
|
95 mm
|
|
Locking Mechanism
|
N/A
|
|
Number of Pieces
|
1
|
|
Product Length [Metric]
|
70 cm
|
|
Is it a Set
|
No
|
|
Packaging
|
Carded
|
|
Pad Dimensions l x w x h
|
N/A
|
|
Quick Release Mechanism
|
Yes
|
