FMHT1-77356

STANLEY® FATMAX® X3G Multiline Laser Level, Green

  • 3 X 360 LASER BEAM PROJECTION: With 3 x 360° laser lines

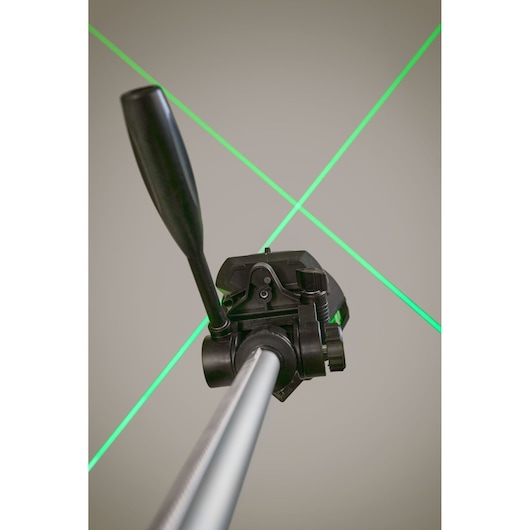

  • TRIPOD THREAD: 1/4” & 5/8" thread allows the unit to be mounted to a tripod
  • GREEN BEAM LASER: With a visible working range of up to 35M; up to 50M with a detector
View more features

Product Overview

MULTILINIENLASER FATMAX X3G, GREEN

Additional Features

  • PRECISION AND ACCURACY: +/- 3mm at 10m

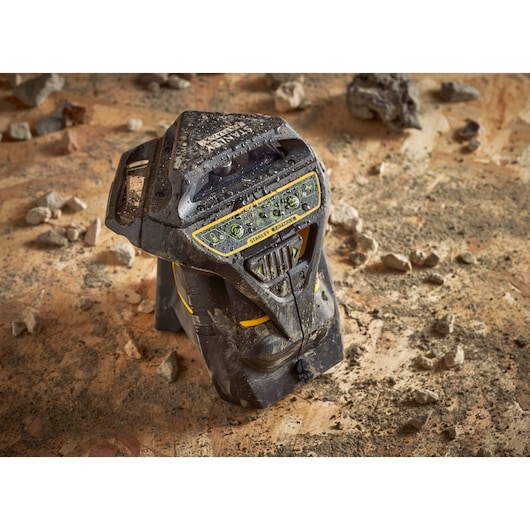

  • IP RATED TO IP54: Protects against dust and water spray
  • PENDULUM LOCK: For safe transportation
  • SELF LEVELING: To +/- 4°
  • PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m

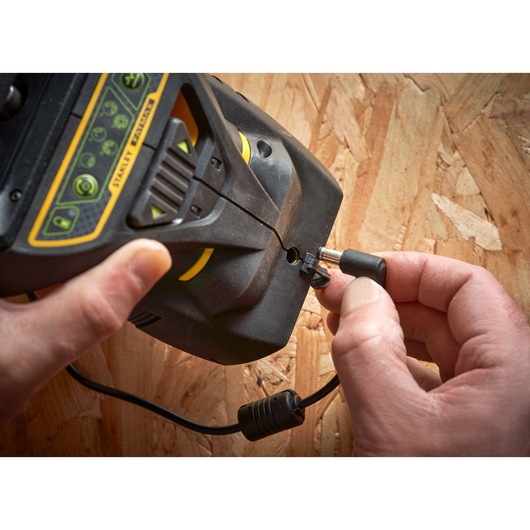

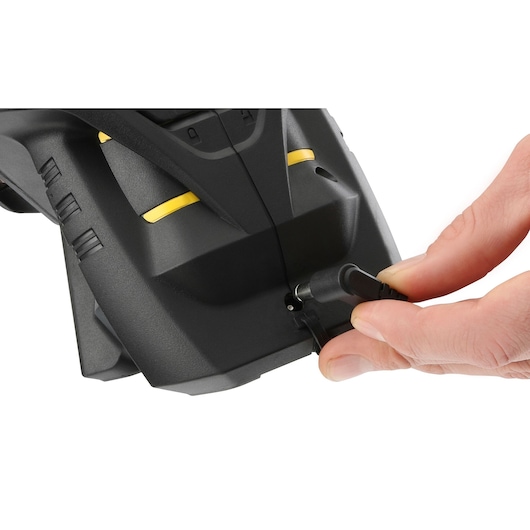

  • RUNS ON: Internal Li-Ion battery

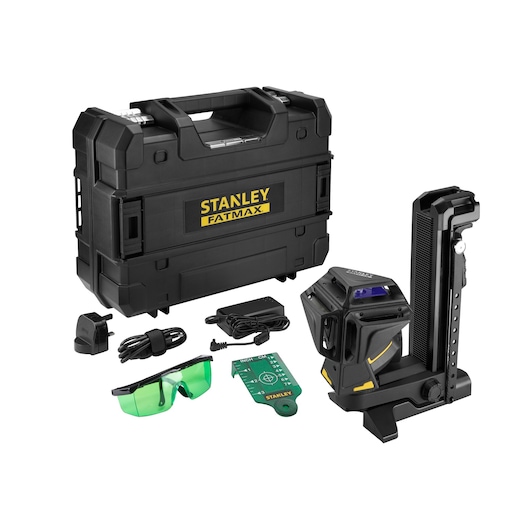

  • INCLUDES: Carry Case, glasses, target card, charger and multi-bracket

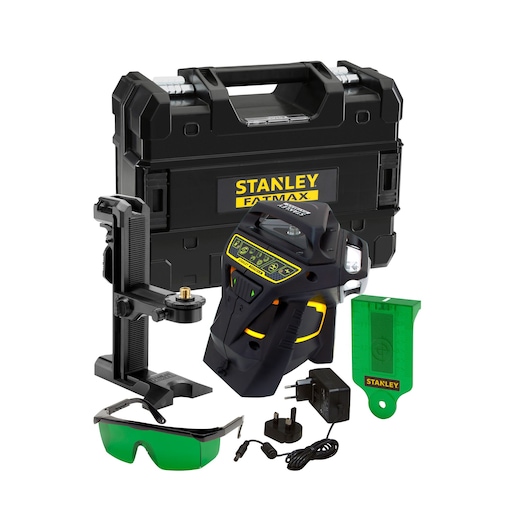

Includes

  • (1) Laser Unit
  • (1) Laser Glasses
  • (1) Laser Grid
  • (1) Charger
  • (1) Target Card
  • (1) Green Laser Glass
  • (1) Batteries

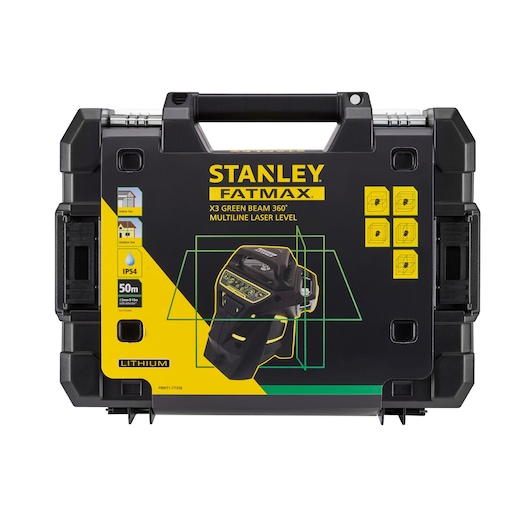

  • (1) Protective Case
  • (1) Extra Plug

Specifications

Battery Chemistry
Lithium Ion
Battery Source
Internal
Display Type
N/A
Has Pulse Mode?
Yes
IP Rating
IP54
Is it a Set?
No
Laser Accuracy
± 3mm @ 10 m
Laser Beam Color
Green Beam
Laser Classification
2
Leveling Type
Self-leveling
Line Diagram
3 x 360°
Materials Housing
Plastic
Number of Batteries Included
1
Number of Beams
3
Number Of Pieces
6
Packaging
Plastic Case
Product Height [mm]
180
Product Length [mm]
435
Product Weight Gross [Kg]
4.04
Product Weight [Kg]
4.035
Product Width [mm]
350
Visible Working Distance [m]
35
Visible Working Distance - Radius [m]
35
Working Distance with Detector [m]
50
Working Distance with Detector - Radius [m]
60
Working Range [mm]
35
