STANLEY® FATMAX® Cross Beam and 2-Spot Laser Level (Red)
FMHT1-77414
STANLEY® FATMAX® Cross Beam and 2-Spot Laser Level (Red)

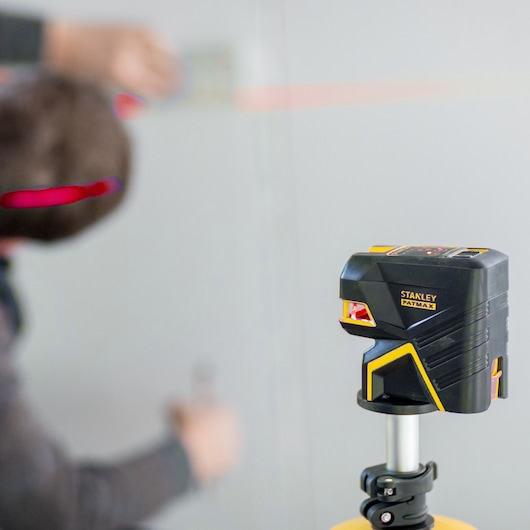

- CROSS LINE LASER BEAM PROJECTION: With 1 x horizontal and 1 x vertical line to create a cross line plus 2 independent spot points (plumb up and down)
- Multi-Bracket, Glasses

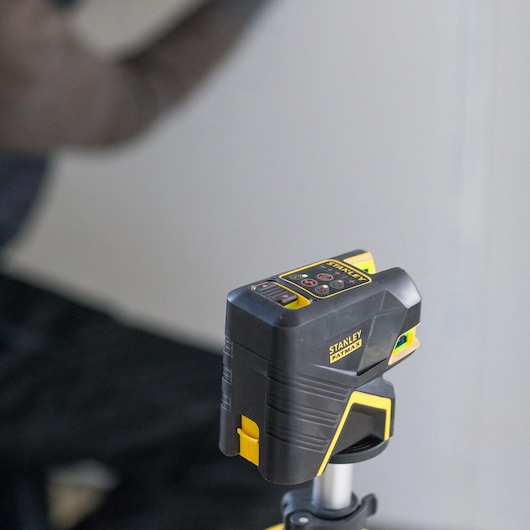

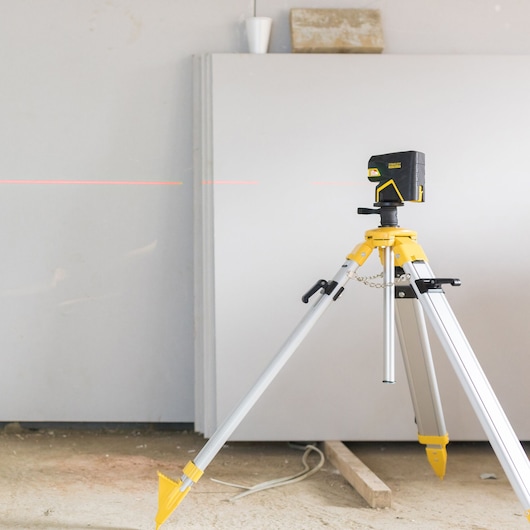

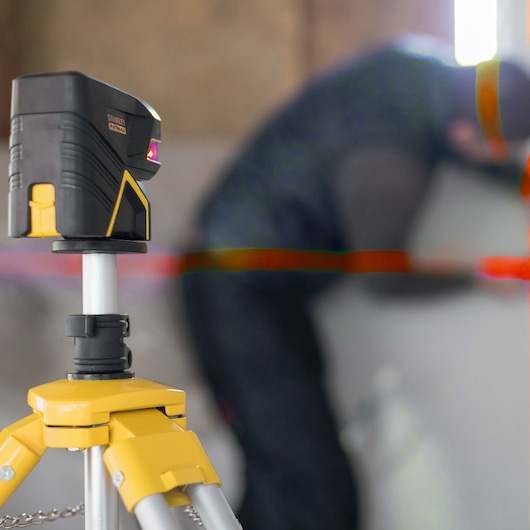

- TRIPOD THREAD: 1/4” & 5/8" thread allows the unit to be mounted to a tripod
Product Overview
FATMAX® cross - 2 spot - red
Additional Features
- SPOT WORKING RANGE of 30m
- DOWN BEAM: With raised clearance provides line visibility and alignment for all track layout
- RED BEAM LASER: With a visible working range of up to 20M; up to 50M with a detector
- PRECISION AND ACCURACY: +/- 3mm at 10m
- IP RATED TO IP54: Protects against dust and water spray
- PENDULUM LOCK: For safe transportation
- PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m
- RUNS ON:4xAA NiMH (supplied)

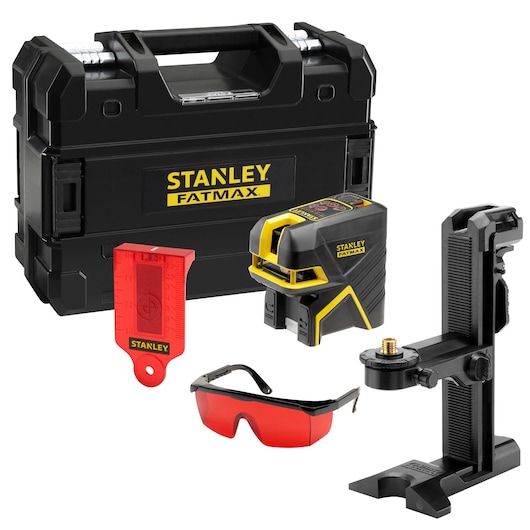

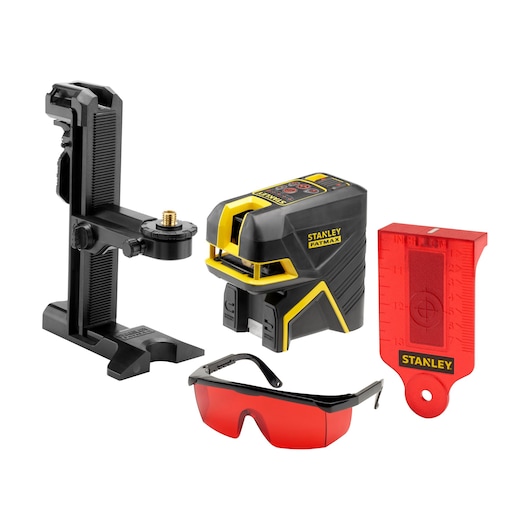

- INCLUDES: Multi Bracket, Glasses, Battery Charger
- 150° FAN ANGLE: Providing ample coverage with little set-up time
Includes
- (1) Kit Box
Specifications
|
Battery Source
|
Alkaline Battery (AA)
|
|
Display Type
|
N/A
|
|
Has CE Mark?
|
Yes
|
|
Has Pulse Mode?
|
Yes
|
|
IP Rating
|
IP54
|
|
Is it a Set?
|
No
|
|
Laser Accuracy
|
± 3mm @ 10 m
|
|
Laser Beam Color
|
Red Beam
|
|
Leveling Time
|
⤠3sec
|
|
Leveling Type
|
Self-leveling
|
|
Line Diagram
|
Cross Line
|
|
Materials Housing
|
Plastic
|
|
Number of Batteries Included
|
4
|
|
Number of Beams
|
2
|
|
Number Of Pieces
|
5
|
|

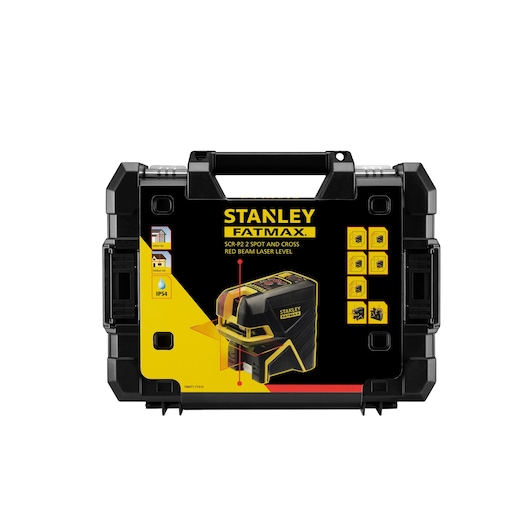

Packaging
|
Plastic Case
|
|
Product Height [mm]
|
180
|
|
Product Length [mm]
|
440
|
|
Product Weight Gross [Kg]
|
3.35
|
|
Product Weight [Kg]
|
3.347
|
|
Product Width [mm]
|
350
|
|
Visible Working Distance [m]
|
20
|
|
Working Distance with Detector [m]
|
50
|
