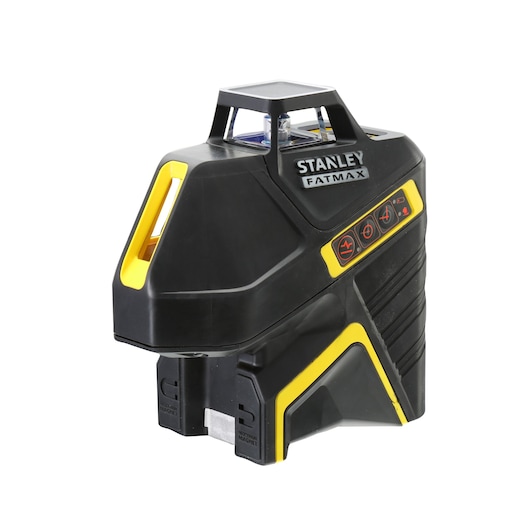

STANLEY® FATMAX® Spot Line 2 Vertical 360° Laser Level (Red)
FMHT1-77416
STANLEY® FATMAX® Spot Line 2 Vertical 360° Laser Level (Red)
- MULTI LINE LASER BEAM PROJECTION: With 4 x vertical beams, 1 x horizontal 360° beam and 1 x down plumb dot
- RED BEAM LASER: With a visible working range of up to 20M; up to 50M with a detector
- PRECISION AND ACCURACY: +/- 3mm at 10m (line), +/- 6mm at 10m (dot)
Additional Features
- IP RATED TO IP54: Protects against dust and water spray
- PENDULUM LOCK: For safe transportation
- PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m
- RUNS ON: 4 x AA batteries (supplied)
- INCLUDES: Laser enhancement glasses, target, Carry Case

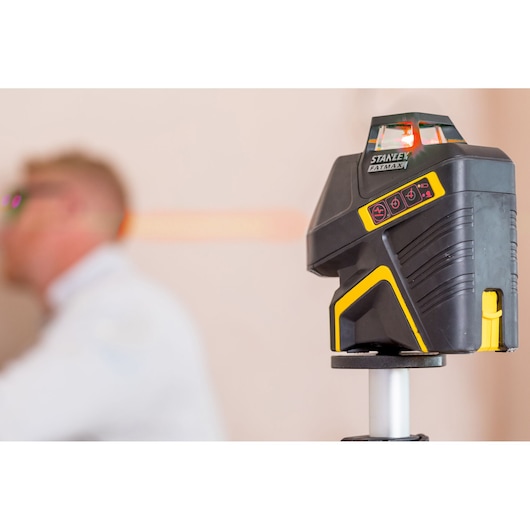

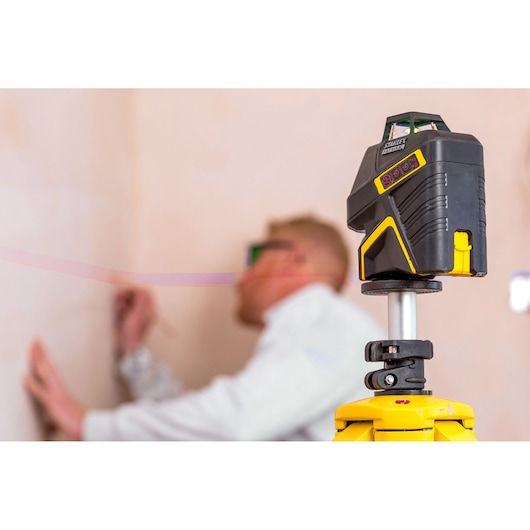

- TRIPOD THREAD: 1/4” & 5/8" thread allows the unit to be mounted to a tripod
- DOWN BEAM: With raised clearance provides line visibility and alignment for all track layout
- MAGNETIC BASE: Allows for it to be mounted directly to metal track to ensure accurate projections all around
Specifications
|
Visible Working Distance - Radius [Metric]
|
20 m
|
|
Leveling Time
|
≤ 3
|
|
Product Width [Metric]
|
35 cm
|
|
Working Distance with Detector [Metric]
|
20 line / 50 m
|
|
Laser Accuracy
|
± 3mm @ 10 m
|
|
Materials Housing
|
Plastic
|
|
Number of Beams
|
2
|
|
Product Weight [Metric]
|
2.842 Kg
|
|
Product Height [Metric]
|
18 cm
|
|
Battery Quantity
|
4
|
|
IP Rating
|
IP54
|
|
Battery Source
|
Alkaline Battery (AA)
|
|
Line Diagram
|
1 x 360° + 1 Vertical
|
|
Product Weight Gross [Metric]
|
2.842 Kg
|
|
Working Distance with Detector - Radius [Metric]
|
50 m
|
|
Display Type
|
N/A
|
|
Laser Beam Color
|
Red Beam
|
|
Leveling Type
|
Self-leveling
|
|
Number of Pieces
|
1
|
|
Product Length [Metric]
|
43.5 cm
|
|
Is it a Set
|
No
|
|
Packaging
|
Plastic Case
|
|
Number of Batteries Included
|
4
|
Support
Warranty
- 1 Year Warranty
We're confident of the quality of our products and we'll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
