STANLEY® FATMAX® 5-Spot and Cross Line Laser Level, Green
FMHT77598-1
STANLEY® FATMAX® 5-Spot and Cross Line Laser Level, Green
- CROSS LINE LASER BEAM PROJECTION: With 1 x horizontal and 1 x vertical line to create a cross line plus 5 independent spot points (3 horizontal, 1 plumb up and down)

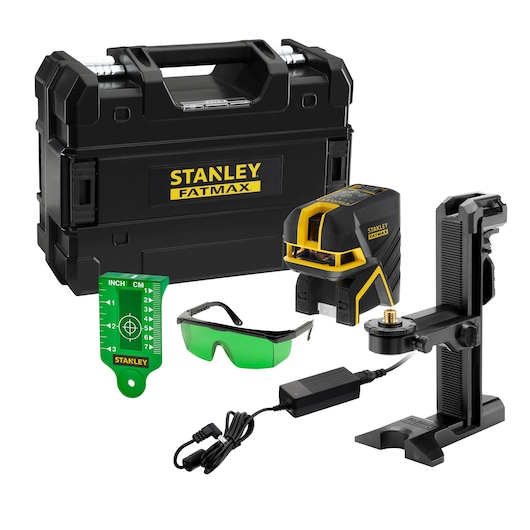

- Includes TSTAK™ compatible case, glasses, target card, charger and multi-bracket

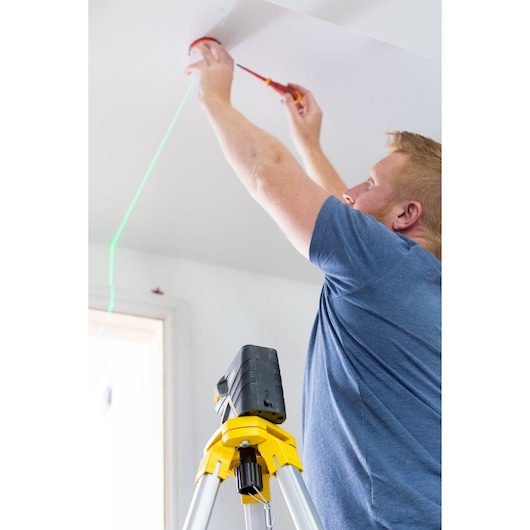

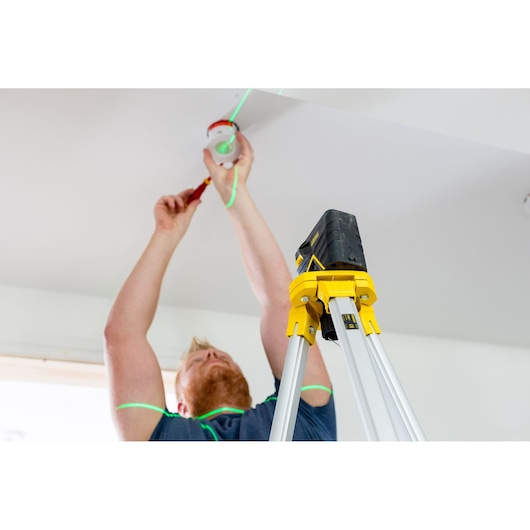

- TRIPOD THREAD: 1/4” & 5/8" thread allows the unit to be mounted to a tripod
Additional Features
- DOWN BEAM: With raised clearance provides line visibility and alignment for all track layout
- 150° FAN ANGLE: Providing ample coverage with little set-up time
- GREEN BEAM LASER: With a visible working range of up to 30M; up to 50M with a detector
- PRECISION AND ACCURACY: +/- 3mm at 10m
- IP RATED TO IP54: Protects against dust and water spray
- PENDULUM LOCK: For safe transportation
- PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m
- RUNS ON: Internal Li-Ion battery
- INCLUDES: Carry Case, glasses, target card, charger and multi-bracket
- MAGNETIC BASE: Allows for it to be mounted directly to metal track to ensure accurate projections all around
Specifications
|
Battery Source
|
Internal
|
|
Display Type
|
N/A
|
|
Has Pulse Mode?
|
Yes
|
|
IP Rating
|
IP54
|
|
Is it a Set?
|
No
|
|
Laser Accuracy
|
± 3mm @ 10 m
|
|
Laser Beam Color
|
Green Beam
|
|
Leveling Time
|
⤠5sec
|
|
Leveling Type
|
Self-leveling
|
|
Line Diagram
|
Cross Line/5 Spots
|
|
Materials Housing
|
Plastic
|
|
Number of Batteries Included
|
1
|
|
Number of Beams
|
2
|
|
Number Of Pieces
|
6
|
|
Packaging
|
Box
|
|
Product Height [mm]
|
340
|
|
Product Length [mm]
|
430
|
|
Product Weight Gross [Kg]
|
3.72
|
|
Product Weight [Kg]
|
3.72
|
|
Product Width [mm]
|
175
|
|
Visible Working Distance [m]
|
30
|
|
Working Distance with Detector [m]
|
50
|
