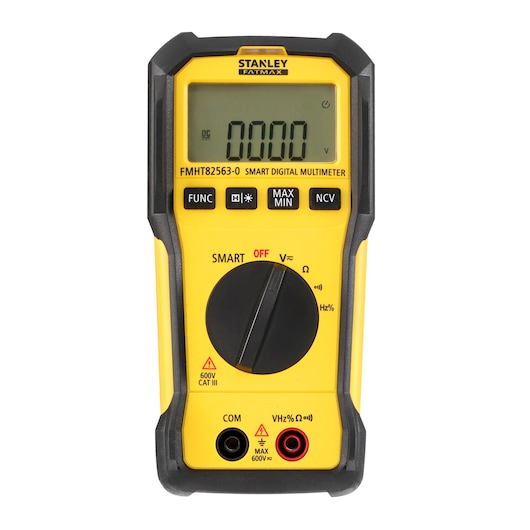

STANLEY® FATMAX® Smart Digital Multi-Meter
FMHT82563-0
STANLEY® FATMAX® Smart Digital Multi-Meter
- SMART MULTI-METER: Smart CAT II and III AC /DC 600V multi-meter automatically detects measurement
- RANGE SELECTION: Automatic range selection with SMART function
- EASY TO READ: Easy to read screen with backlit dual display for ease of use
Product Overview
The STANLEY® FATMAX® Smart Digital Multi-Meter is a versatile tool that offers smart CAT II and III AC/DC 600V measurement capabilities. With its automatic range selection and SMART function, it can easily detect the appropriate measurement range. The multi-meter features an easy-to-read screen with a backlit dual display, ensuring convenience and clarity during use. Additionally, it includes a non-contact voltage (NCV) feature with sensitivity adjustment, allowing for voltage detection without physical contact. The voltage AC/DC range is up to 600V, while the continuity is less than 40Ω. It also offers resistance measurement up to 10MΩ, frequency measurement up to 3KHZ, and a data hold function with min/max capability.
Additional Features
- NCV (NON CONTACT VOLTAGE): Enables voltage detection without contact - Sensitivity adjustment
- VOLTAGE AC/DC: 600V
- CONTINUITY: <40Ω
- RESISTANCE: 10MΩ
- FREQUENCY: 3KHZ
- DATA HOLD: min/max function
Specifications
|
Battery Type
|
Alkaline Battery (AAA)
|
|
Has CE Mark?
|
Yes
|
|
Is Battery Included?
|
Yes
|
|
Is it a Set?
|
No
|
|
Number Of Pieces
|
1
|
|
Packaging
|
Blister
|
|
Product Height [mm]
|
150
|
|
Product Length [mm]
|
220
|
|
Product Weight [Kg]
|
0.35
|
|
Product Width [mm]
|
90
|
|
Standards / Norms
|
2011/65/EU (RoHS), 2014/30/EU (EMC), 2014/35/EU (LVD)
|
|
Tester & Multimeters Type
|
Automotive Multimeter
|
|
Voltage [V]
|
600
|
Support
Warranty
- 1 Year Limited Warranty, 3 Year Limited Warranty When Registered
All STANLEY FATMAX power tool products include a 1 year guarantee as standard. Register your STANLEY FATMAX power tool within 4 weeks of purchase and qualify for an additional 2 years guarantee.
